Tube Fired Hot Tack Sprayers (TPS)
Tube Fired Hot Tack Sprayers (TPS)
Location:
or
Call 1-877-GO-Cubex
Description

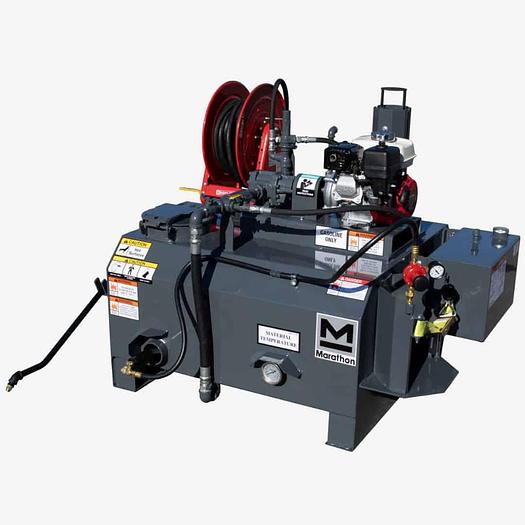

Marathon's hot tack sprayers provide a fast and reliable means of heating and applying bituminous emulsions and tack coats. Our units are capable of heating a large volume of bitumen on a steady basis and offer many operator friendly features and options.
Specifications
| Manufacturer | Marathon Equipment |
| TPS115PS Shipping Weight | 619 lbs (280 kg) |
| TPS115PS Tank Capacity | 115 gal (435 L) |
| TPS115PS Pump | 10 GPM |
| TPS115PS Burner (1) | 80,000 BTU vapour propane |
| TPS115PS Overall Length | 44” |
| TPS115PS Overall Width | 56" |
| TPS115PS Overall Height | 45" |
| TPS115PS Loading Height | 25" |
| TPS115PS Axle(s) | N/A |
| TPS115PS Load Capacity | N/A |
| TPS115PS Tires - size | N/A |
| TPS250PT Shipping Weight | 1,407 lbs (638 kg) |
| TPS250PT Tank Capacity | 250 gal (946 L) |
| TPS250PT Pump | 10 GPM |
| TPS250PT Burner(2) | 80,000 BTU vapour propane |
| TPS250PT Overall Length | 134" |
| TPS250PT Overall Width | 72" |
| TPS250PT Overall Height | 68" |
| TPS250PT Loading Height | 47" |
| TPS250PT Axle(s) | Single |
| TPS250PT Load Capacity | 5,200 lbs (2,359 kg) |
| TPS250PT Tires - size | (2) 225/75/R15 |
| TPS500PT Shipping Weight | 2,583 lbs (1,172 kg) |
| TPS500PT Tank Capacity | 500 gal (1,892 L) |
| TPS500PT Pump | 10 GPM |
| TPS500PT Burner(2) | 80,000 BTU vapour propane |
| TPS500PT Overall Length | 166" |
| TPS500PT Overall Width | 80" |
| TPS500PT Overall Height | 74" |
| TPS500PT Loading Height | 54" |
| TPS500PT Axle(s) | Tandem |
| TPS500PT Load Capacity(2) | 5,200 lbs (4,718 kg) |
| TPS500PT Tires size (4) | 225/75/R15 |
